Practical Plastic Resin Dryers Plastic Dehumidifier Plastic Dryer
Machine
Product Description
CSG series is a fully automatic drying system with zeolite
desiccant beds, which can be used with Hopper Bank Series and
multi-hopper systems. Based on the type and quantity of polymer, it
can adapt and automatically control operating parameters.Compared
with the traditional dryer, it saves 40% of the energy.
1. Ease of maintenance with access process, regeneration and air
filters
2. Self-adaptive PID temperature control from 60℃ to 300℃
3. No use of cooling water
4. No moving or rotating internal parts
5. No need of manual control, full auto-adaptive operation
6. On-board heating unit on hopper
7. Diagnostic functions, dewpoint, heater and temperature alarm
8.Visual and audible alarms available
9. Anti-stress function protecting polymers against overheating
10. Sturdy, well proven design for extended operational life
11. Visual and audible alarms available
12. Automatic dew point control system: not switch to new desiccant
bed before the dew point gets -30°C
Main Technical Parameters
| Model | CSG-315 | CSG-800 | CSG-1600 | CSG-3200 | CSG-5000 | CSG-8000 |
| Volume(L) | 315 | 800 | 1600 | 3200 | 5000 | 8000 |
| Capability(kg) | 200 | 500 | 1000 | 2000 | 3000 | 5000 |
| Dry Fan(KW) | 3 | 5.5 | 7.5 | 18.5 | 22 | 33 |
| Rebirth Fan(KW) | 0.37 | 1.1 | 1.5 | 3 | 4 | 4 |
| Drying Heating(KW) | 15 | 24 | 36 | 54 | 63 | 96 |
| Rebirth Heating(KW) | 7.5 | 12 | 18 | 27 | 36 | 36 |

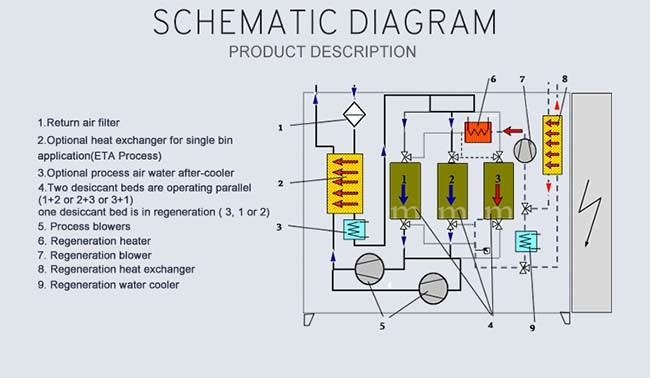

Zeolite tribler design with three desiccant cartridges and three
pump technology: two dedicated to process air production and one
for saturated tower regeneration for a continuous dry air flow,
automatic regeneration and cooling phase.
1. High-performance 3-bed
2. Three pumps
3. Dew point -30℃ to -70℃, dewpoint monitor
4. Dedicated to large-scale production up to 1200kg/h
FAQQ1: Which city are you in? How can I get to your factory? Are you a
trading company or factory?
A1: We are in Zhangjiagang city, two hours driving from Shanghai.
We are a factory, manufacturing mainly plastic dryer machines. We
offer turnkey solutions including conveying, drying and mixing with
more than 10 years experience.
Q2: Why is your prices higher than others?
A2: We offer high-end machines in our business. Welcome to our
factory to have a visit. And you will see the difference.
Q3: What is your delivery time?
A3: Normally no more than 40 working days.
Q4: How to install my machines when it arrives? How much the cost?
A4: We will send our engineers to your factory to install the
machines and train your staff how to operate the machines If
needed. Or you can arrange engineers to study in our factory.
You are responsible for air tickets, accommodation and our engineer
wage USD100/day/person.
Q5: How long time for installation?
A5: Subject to machines and the situation in your factory. If
everything is ready, it will take about 2 days for dryers and 15
days for central conveying system.
Q6: How about the spare parts?
A6: We will send one year enough easy broken spare parts together
with the machines for free, we suggest you buy more units to save
international courier such as DHL, it is really costly.
Q7: What is your guarantee?
A7: We have one year guarantee and life-long technical support. Our
service also including machine maintaince.
Q8: What is your payment term?
A8: 30%T/T in advance as down payment, rest should be paid before
shipping. L/C is supported also.
